FLYMARKER MINI 65/30 4.3”
GENERAL INFORMATION
Our best-selling battery-operated handheld marking system is now equipped with a touch user interface. With the new operating concept of the FlyMarker mini 65/30 4.3″ touch, we’re offering our customers a modern upgrade. Despite its fresh look, it retains all the features that make the FlyMarker mini 65/30 a standout performer—100% mobile, lightweight, flexible, and ensures fast, permanent, and tamper-proof markings on nearly any surface!
- Marking area (x/y):65 x 30 mm
- Weight:2,4 kg incl. battery
- Available character heights:1.0 to 29.9 mm
FEATURES & BENEFITS
INNOVATIVE
• Simple operation via touch user interface.
• Latest processor technology for maximum system performance.
• High-resolution large 4.3″ color display with clear and intuitive operating software.
EASY TO USE
• Easy handling of the battery-operated dot peen marker thanks to a device weight of only 2.4 kg (incl. battery).
• Perfectly adapted device design for effortless 1 or 2 hand operation.
• Flexibly adjustable impact strengths, perfectly adapted to the material and the desired marking depth.
PORTABLE
• 2 powerful 18V lithium-ion batteries (standard scope of delivery) allow mobile marking at any time.
• ALL-IN-ONE system with integrated control unit.
• Wireless marking of immobile and voluminous workpieces or components that are difficult to access.
SPECIFICATIONS
Marking area (x/y): 65 x 30 mm
Available character heights: 1.0 to 29.9 mm
Fonts: Medium spaced lettering similar to DIN 1451 in single dot characters (size 5 x 7 or 9 x 13)
Drive of the marking pin: Electromagnetic
Available characters: Numbers 0 – 9, capital letters / small letters A – Z; a-z various punctuation marks etc.
Interface: USB-A, USB-B, Ethernet
Height tolerance compensation: Up to max. 5 mm (constant marking depth also on uneven surfaces)
Weight: 2.4 kg incl. battery
Battery capacity: 2.0 Ah 18V (Lithium-Ion) / 5.2 Ah 18V (optional)
Marking force: 30 possible force settings (constant impact performance through the complete battery runtime)

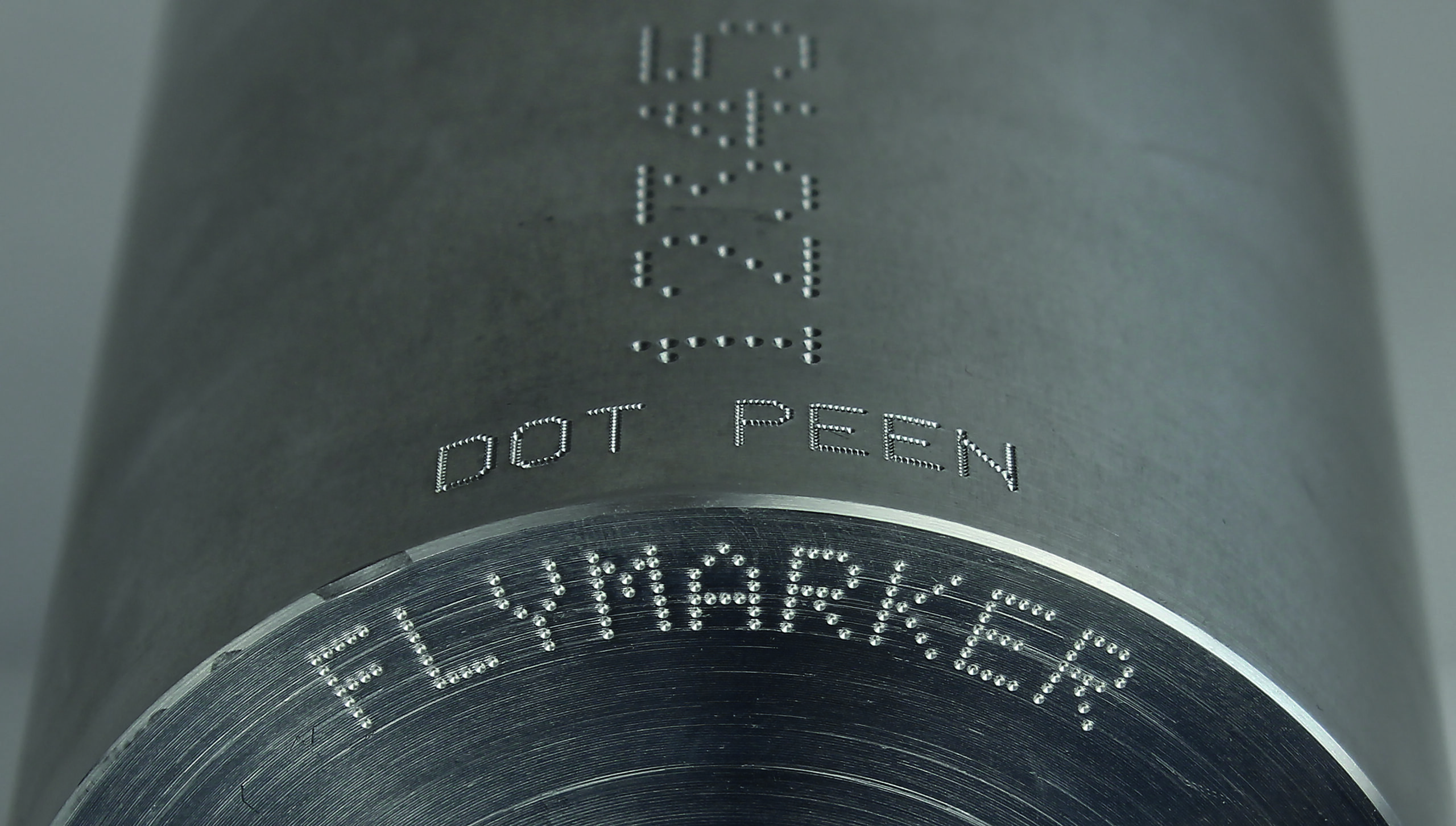

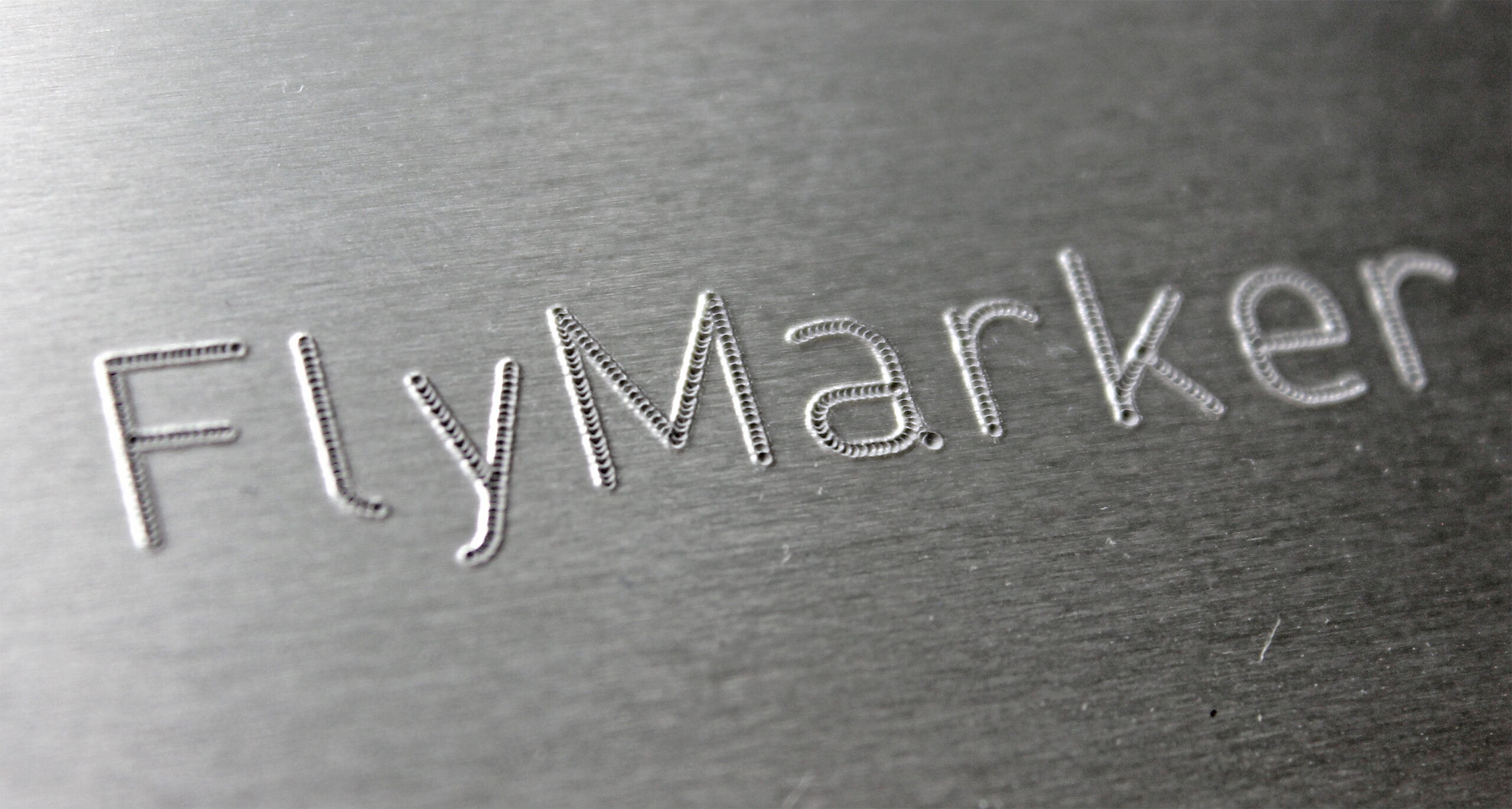

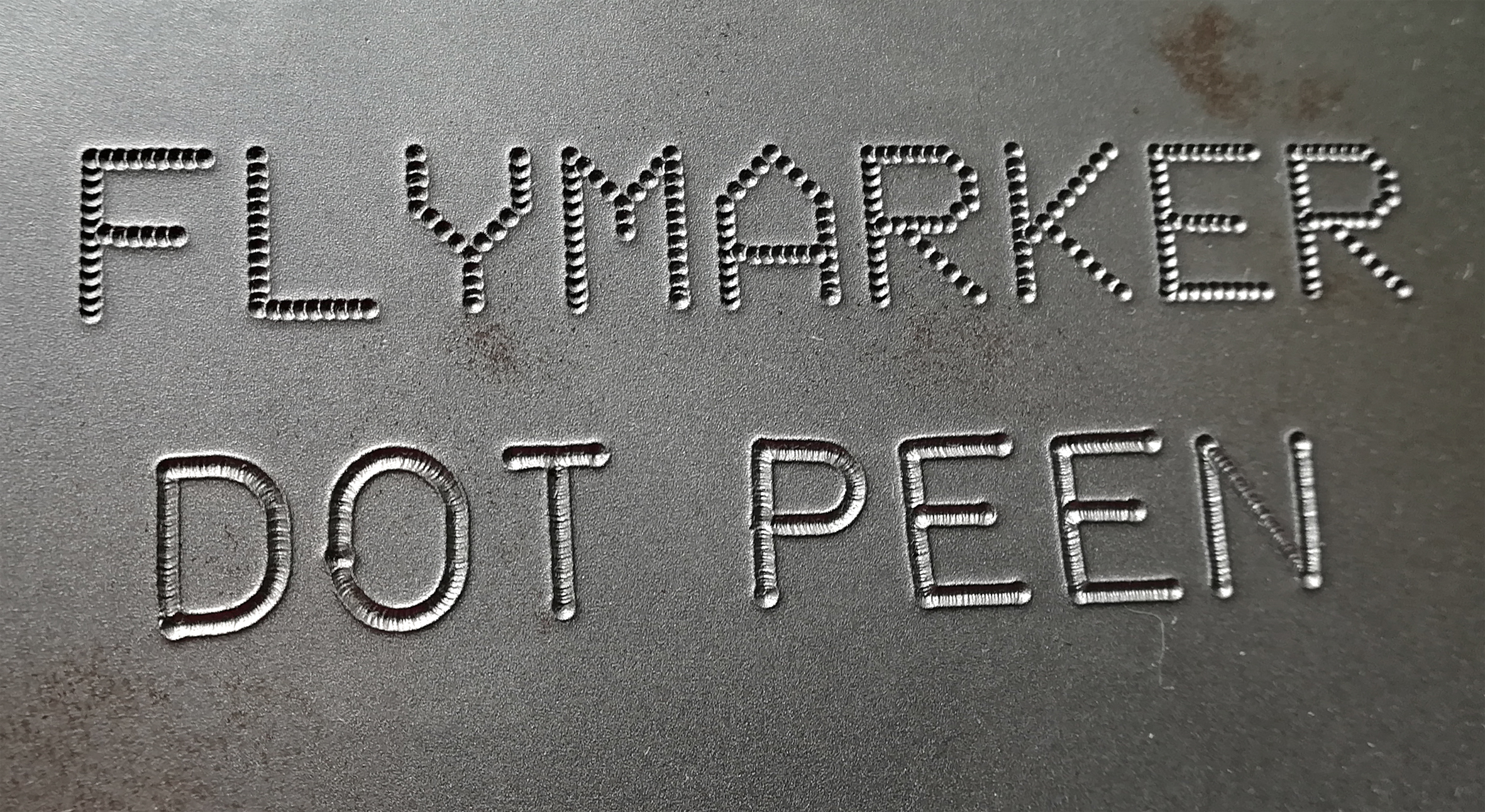

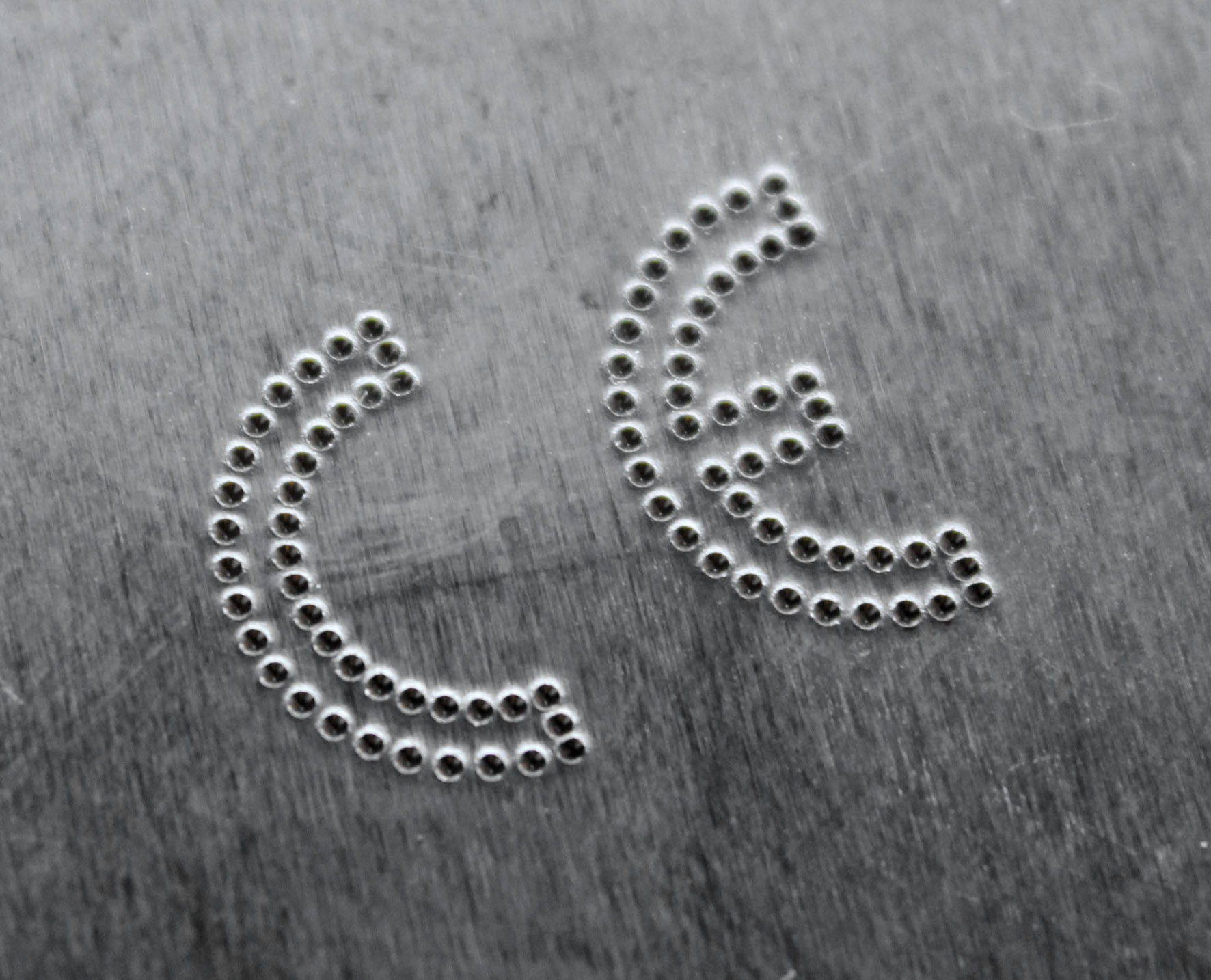

MARKING EXAMPLES
